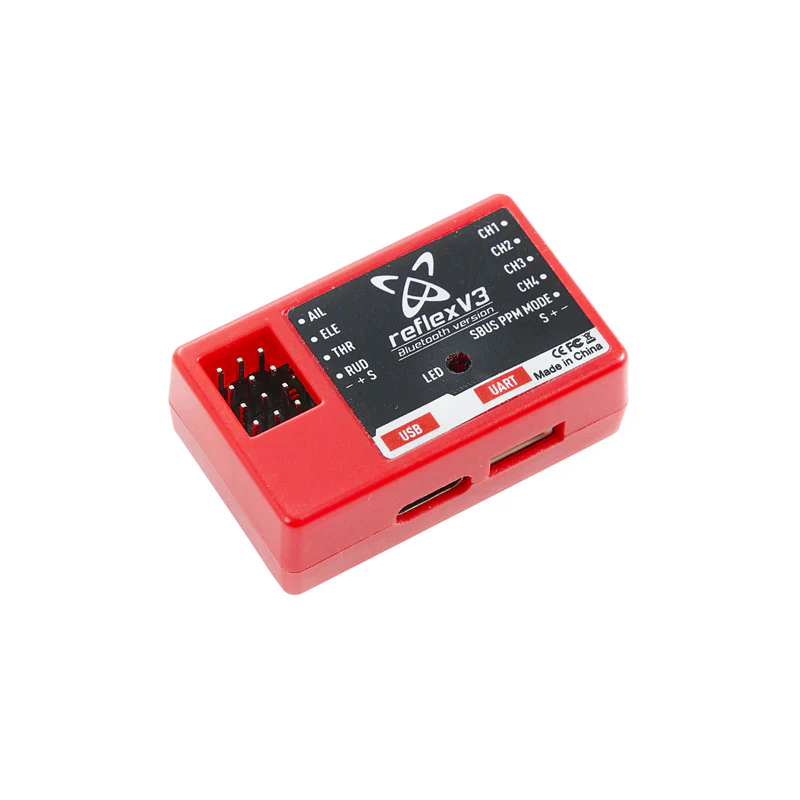

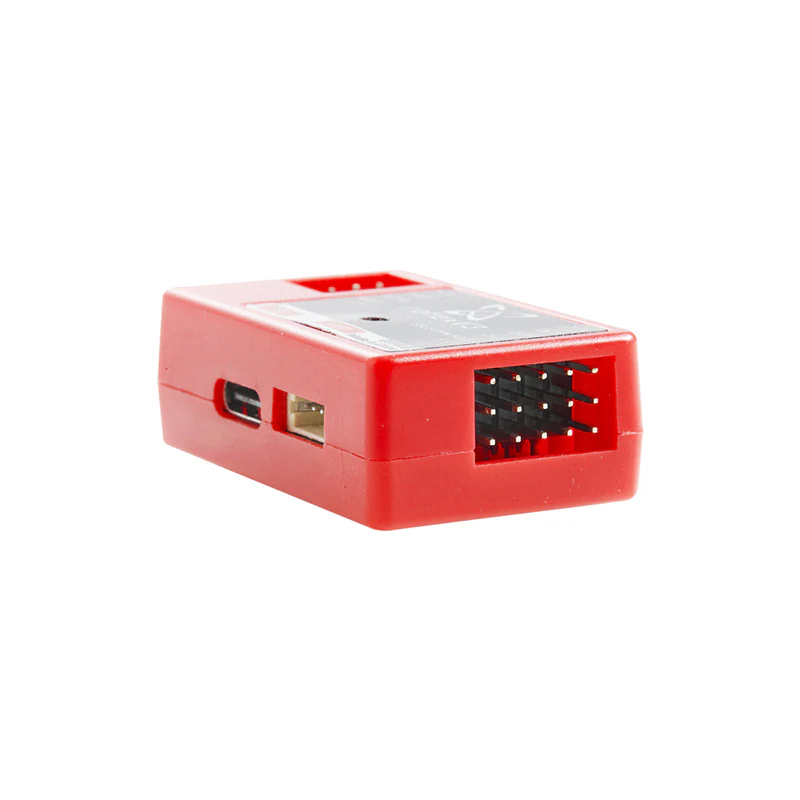

We are proud to introduce the new and improved FMS Reflexr® V3 Stable Flight Controller!

Reflex® V3 is designed to break down barriers for beginners, giving them the confidence to fly, while also minimizing crash risks for experienced pilots. Flying is simple when you have your very own "co-pilot"- the Reflex® V3!

Reflex® V3 Functions

3 flight modes are available: Stabilized, Optimized or Manual Mode. This is controlled with a two-position or three-position switch on the transmitter. The middle position of the three-position switch defaults to Manual mode (off). When assigned to a two-position switch, the Reflex® system switches between stabilized and optimized modes.

Stabilized Mode - Designed for beginners. This mode reduces the sensitivity of the aircraft by limiting control surface angles, completely eliminating rolls and yaw caused by operational errors, and maximizing flight safety. When switched to this mode, the aircraft can quickly level itself from any attitude when the pilot is not actively controlling it. Reflex® stabilized mode is the most reliable "co-pilot" for beginner players.

Manual Mode - Turns off all gyro functionality, the aircraft is flown completely manually when the gyro is off.

Optimized Mode - Utilizing advanced solid-state gyros, the Reflex® system maintains aircraft attitude by counteracting inflight upsets - from gusts to crosswinds. With Reflex, even small aircraft will fly with the confidence of something much larger!

Upgraded Reflex® V3 Technology:

Customizable Parameter Adjustment: Reflex® V3 integrates bluetooth, pilots have the flexibility to adjust parameters based on their personal preferences and requirements, ensuring a tailored and unforgettable flying experience.

Expanded RC Aircraft Compatibility: Beyond FMS models, the Reflex® V3 seamlessly integrates with a variety of RC airplane brands, offering pilots an extensive selection and greater versatility for their flying endeavors.

Universal Accessibility: The Reflex® V3 is available for download on IOS, Android mobile, and Windows, ensuring compatibility with various devices and catering to the diverse needs of users.

Unique Identification Code: Each Reflex® system is equipped with an exclusive identification code, guaranteeing that pilots only connect to their own device even in environments with multiple Reflex® systems. This minimizes the risk of pairing with incorrect models and enhances safety during flight.

Personalized Reflex® Naming: Pilots have the freedom to assign custom names to their Reflex® V3 devices, enriching their personal experience and sense of ownership.

Password Modification: Users can independently modify the Reflex® password, effectively preventing frequency hopping and ensuring security.

Reflex® V3 With Stable Flight Technology. Confidence For Beginner Pilots And Risk Minimization For Experienced Pilots.

Download Link:

Reflex® V3 Windows Download

Reflex® V3 Android Download

Search 'FMSHOBBY' on the App Store/Google Play or scan the QR code in the Reflex®V3 manual to download the app.

Manual:

FMS Reflex® V3 Manual

FMS Reflex® V2 Manual

Applicable Aircraft:

All Brands Of RC Airplanes	All FMS RC Airplane	1700mm F4U V2	980mm P-40	1100mm MXS V2	1200mm CJ-6	1800mm Ranger
1220mm Super EZ V4	1700mm F7F	1100mm PC-21	1400mm J3 Cub V4	1700mm PA-18 Super Cub	80mm Rafale	70mm F-18 V2
80mm BAE Hawk	80mm Futura V3	80mm F-4	70mm A-10 V2	70mm Avanti V3	2000mm Beaver V2	1220mm Ranger
1500mm P-51	1400mm F4U	1100mm Zero	1400mm Kingfish	800mm F-4U	800mm T-28	750mm Edge 540
1400mm P51	1400mm P40	1100mm F3A	1400mm Sky Trainer 182	80mm Futura	80mm T-28	70mm F-16 V2
850mm Flash V2	1700mm P-51	1100mm YDP-51	1500mm Maule	64mm Futura	80mm Integral	64mm F-16
1220mm Ranger V2	90mm Avanti	64mm J-10

Reflex® V3 Video:

Reflex® V2 Video:

1020mm F3A Parts

1100mm F3A Propeller 11*5.5

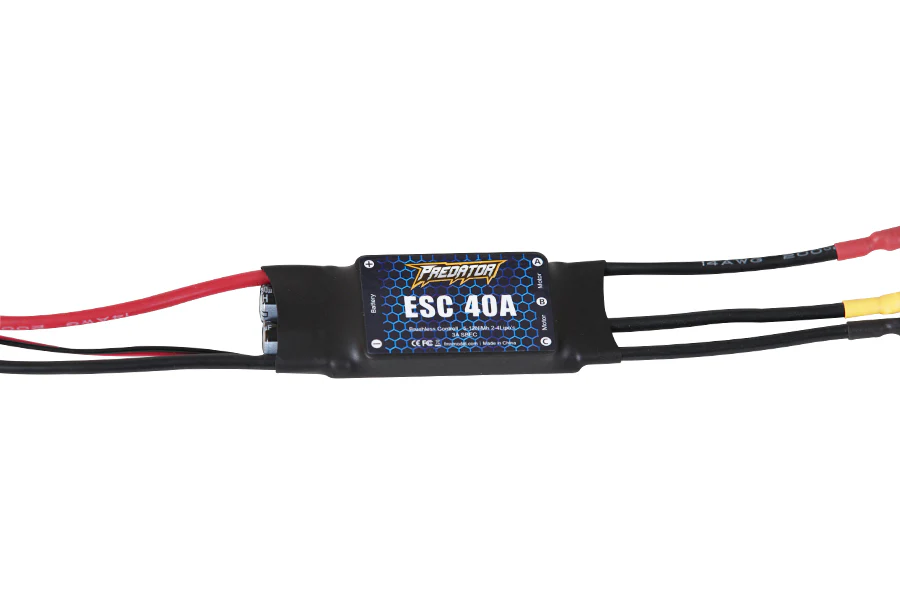

Common Parts - 40A ESC With 200mm Input Cable, 3.5mm Motor Connector, XT60

FMS Reflex V3 Stable Flight Controller

1020mm F3A Fuselage

1020mm F3A Pipe

1020mm F3A Decal Sheet

1020mm F3A Landing Gear Insert

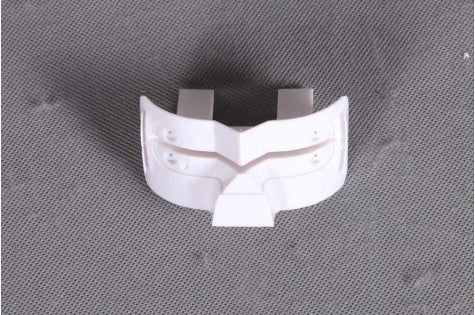

1020mm F3A Landing Gear Base

1020mm F3A Top Wing

1020mm F3A Main Landing Gear Set

1020mm F3A Cockpit

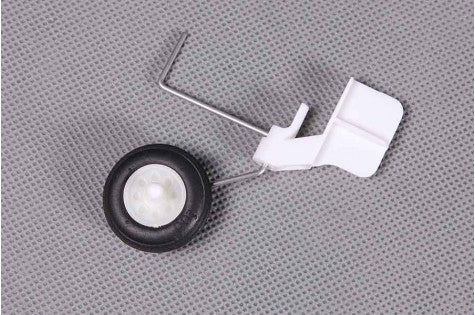

1020mm F3A Rear Landing Gear Set
